*Data only rapresents an indication for the actual riding distance. The actual range can vary depending on sage and rider prole, riding conditions and battery life.
The particular trapezoidal design allows a stiffer and stronger structure of the entire frame
Frame with BSA Bottom Bracket
Predisposition for cable for suspended remote control
Horizontal Rear Brake: Disk brake post mounted on chain stay. This solution allows a more appealing shape, better braking performances and weight reduction
Through a sophisticated hydraulic forming process we can build aluminium frames with complex tubes that increase the strength of the structure
This system allows to widen the rear stop by moving both the disc brake and the chain line by 3 mm. As a result of that you will have a greater wheel camber which gives stability and driving precision (used in Plus models)

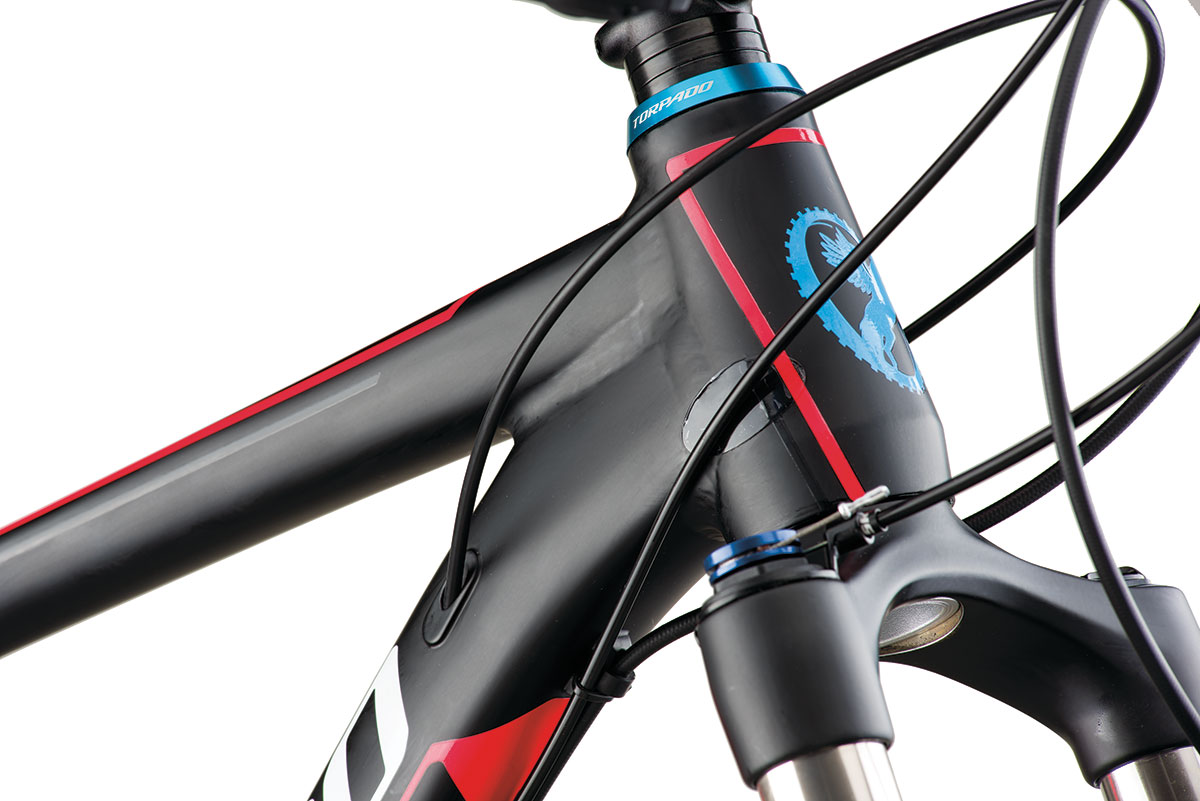

Tapered head tube improves stiffness, stability and riding precision
High performance aluminium
Disk brake post mounted on seat stay. This solution allows excellent braking performances and weight reduction
Torpado technicians and Torpado Factory Team cooperate on MTB design, development, and testing
Frame with integrated cable system, for a neat look of the bicycle
| SIZE | A SEAT TUBE LENGTH (mm) | F TOP TUBE HORIZONTAL (mm) | D HEAD TUBE LENGTH (mm) | E SEAT TUBE ANGLE EFFECTIVE (°) | C HEAD TUBE ANGLE (°) | FC FRONT CENTRE (mm) | RC CHAIN STAY LENGTH (mm) | WB WHEELBASE (mm) | DROP | STACK (mm) | REACH (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMALL | 380 | 555 | 90 | 73° | 70° | 618 | 440 | 1050 | 60 | 599 | 372 |
| MEDIUM | 430 | 585 | 100 | 73° | 70° | 648 | 440 | 1081 | 60 | 609 | 399 |
| LARGE | 480 | 610 | 110 | 73° | 70° | 674 | 440 | 1106 | 60 | 618 | 421 |
| X-LARGE | 530 | 630 | 120 | 73° | 70° | 694 | 440 | 1127 | 60 | 628 | 438 |
| SIZE / BIKER HEIGHT | SMALL / 164 - 172 cm | MEDIUM / 172 - 180 cm | LARGE / 180 - 188 cm | X-LARGE / 188 - 196 cm |
