RIBOT N is the Torpado brand MTB. The muscular bicycle of the Impudent line with the carbon frame suitable for all riders.
Carbon dropout
Outer skin UD carbon
It’s a new standard, which allow reducing needed material to match the caliper to the frame. This solution reduce the weight and the torque on the frame during the slow down. Anyway, through an adaptor, is possible using post mount calliper.

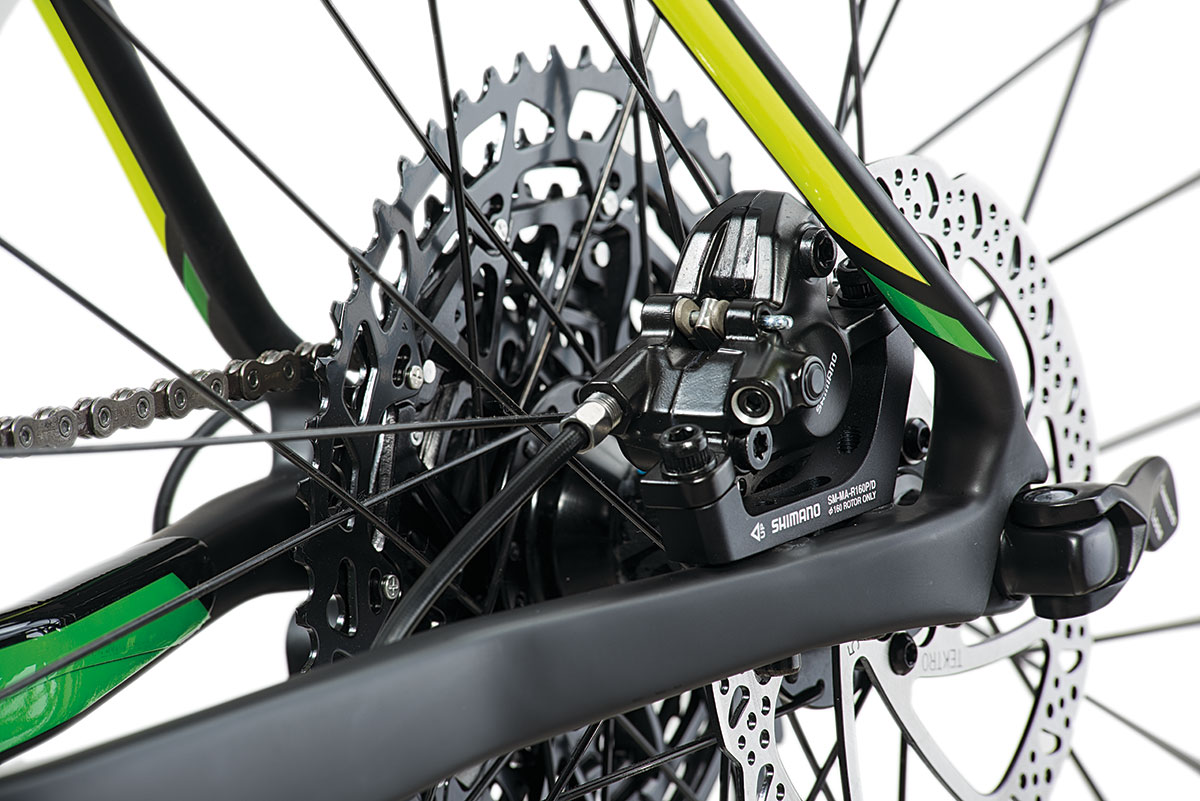

Horizontal Rear Brake: Disk brake post mounted on chain stay. This solution allows a more appealing shape, better braking performances and weight reduction
Monocoque carbon frame, disc-brake mount included
New Cable entrance system with removable alloy plug to host up to 5 cables. Result of minimal design

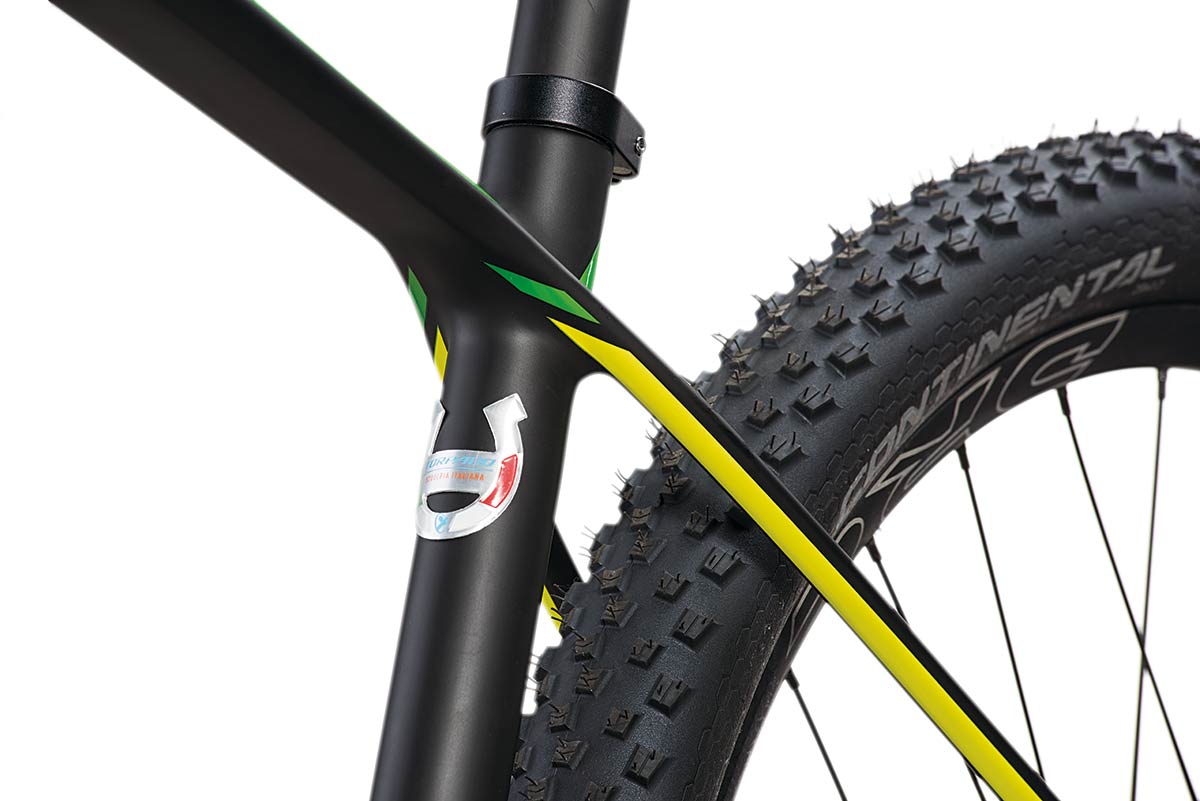

This new system guarantees incredible pedal reactivity thanks to the record chainstays 425mm length, which have been realized for of the use of the 1 x drivetrain. The specific disposition of carbon fibers in the seat stays, together to the new geometry, guarantee better transmission of the traction, mechanical grip and comfort.
This system allows to widen the rear stop by moving both the disc brake and the chain line by 3 mm. As a result of that you will have a greater wheel camber which gives stability and driving precision (used in Plus models)
Tapered head tube improves stiffness, stability and riding precision
Torpado Front Derailleur Direct-Mount
Front derailleur is mounted directly on the seat tube without any clamp; this solution allows weight reduction of the bicycle
Torpado technicians and Torpado Factory Team cooperate on MTB design, development, and testing
| SIZE | A SEAT TUBE LENGTH (mm) | F TOP TUBE HORIZONTAL (mm) | D HEAD TUBE LENGTH (mm) | E SEAT TUBE ANGLE EFFECTIVE (°) | C HEAD TUBE ANGLE (°) | FC FRONT CENTRE (mm) | RC CHAIN STAY LENGTH (mm) | WB WHEELBASE (mm) | DROP | STACK (mm) | REACH (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMALL | 390 | 570 | 95 | 73.5° | 69.5° | 644 | 430 | 1067 | 60 | 602 | 392 |
| MEDIUM | 440 | 600 | 100 | 73.5° | 69.5° | 674 | 430 | 1098 | 60 | 606 | 421 |
| LARGE | 490 | 630 | 115 | 73.5° | 69.5° | 705 | 430 | 1128.3 | 60 | 621 | 446 |
| X-LARGE | 540 | 650 | 125 | 73.5° | 69.5° | 725 | 430 | 1149 | 60 | 630 | 463 |
| SIZE / BIKER HEIGHT | SMALL / 164 - 172 cm | MEDIUM / 172 - 180 cm | LARGE / 180 - 188 cm | X-LARGE / 188 - 196 cm |
