*Data only rapresents an indication for the actual riding distance. The actual range can vary depending on sage and rider prole, riding conditions and battery life.

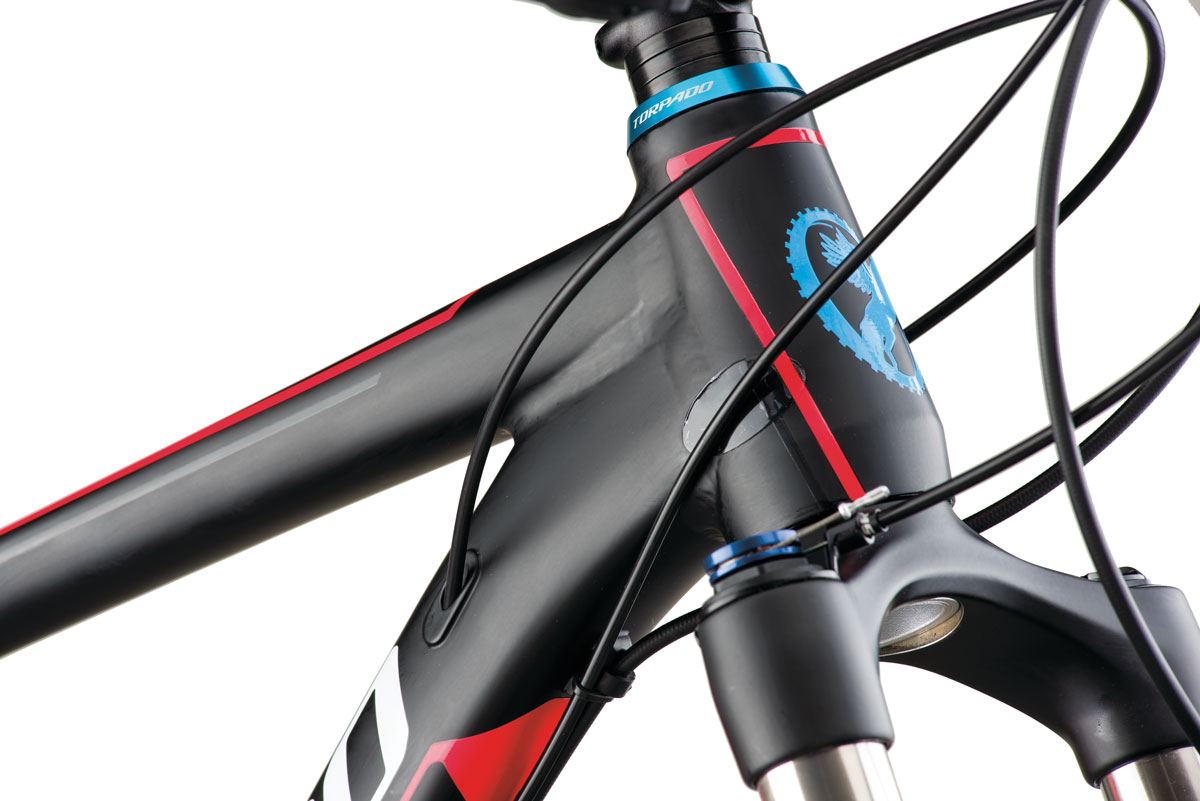

Frame with integrated cable system, for a neat look of the bicycle
Torpado technicians and Torpado Factory Team cooperate on MTB design, development, and testing
Disk brake post mounted on seat stay. This solution allows excellent braking performances and weight reduction
High performance aluminium
Tapered head tube improves stiffness, stability and riding precision
This system allows to widen the rear stop by moving both the disc brake and the chain line by 3 mm. As a result of that you will have a greater wheel camber which gives stability and driving precision (used in Plus models)
Through a sophisticated hydraulic forming process we can build aluminium frames with complex tubes that increase the strength of the structure

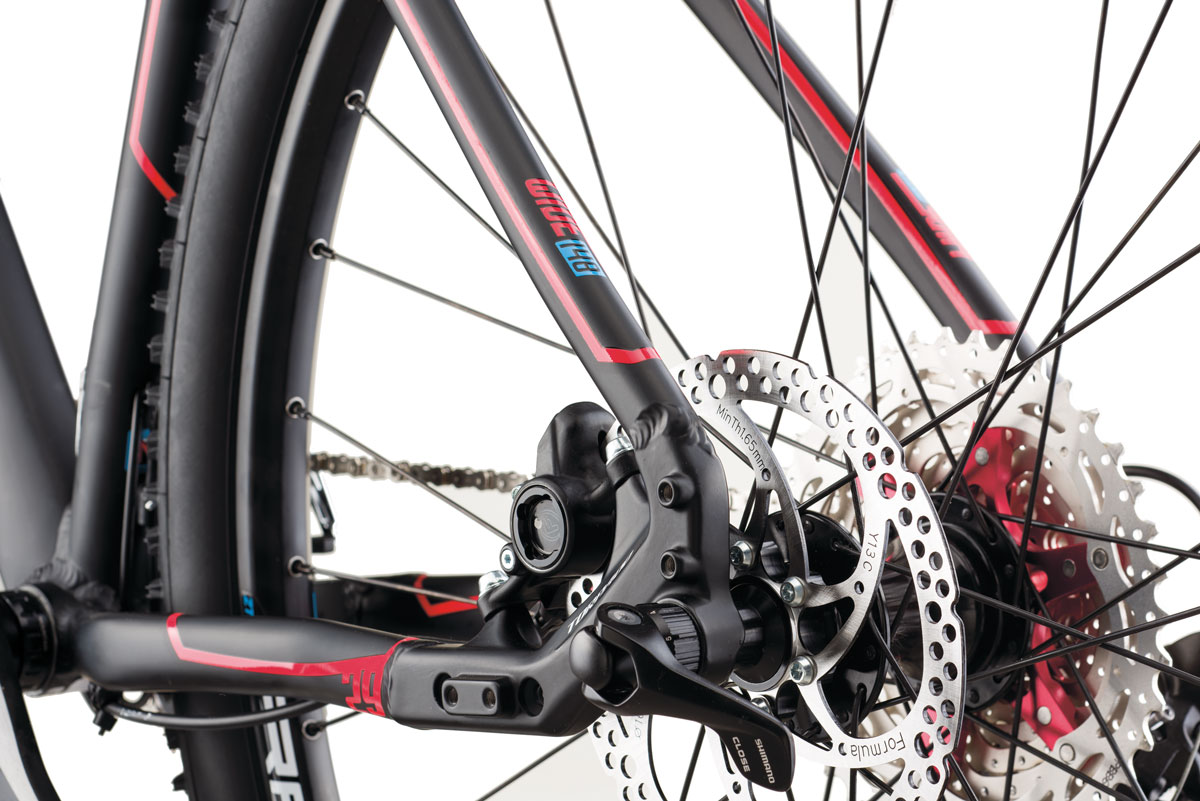

Horizontal Rear Brake: Disk brake post mounted on chain stay. This solution allows a more appealing shape, better braking performances and weight reduction
Predisposition for cable for suspended remote control
Frame with BSA Bottom Bracket
The particular trapezoidal design allows a stiffer and stronger structure of the entire frame
| FORK | REAR DERAILLEUR | CHAINWHEEL | SHIFTING LEVERS | CASSETTE | HUBS | RIMS | TYRES | BRAKES | HANDLEBAR | STEM | SEAT POST | SADDLE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20INAI | RIBOT A-150 SRAM SX EAGLE 12S | Rock Shox Revelation RC 150 BOOST | Sram SX | Sram SX Eagle 32T 175mm | Sram SX | Sram PG-1210 11-50 | Torpado | DRC FRONT 29” i30 REAR 27,5” i33 | FRONT Continental TrailKing 29”x2.4 REAR Continental MountainKing 27,5”x2.6 | Formula Cura 180/180 | Torpado Alloy W780 R | 4US Alloy 50mm | KS Eteni 27.2 100/420 | Selle Italia X3 Boost Flow |
| 20INAT | RIBOT A-150 SHIMANO XT MIX 11S | Rock Shox Revelation RC 150 BOOST | Shimano XT M8000 | FSA Afterburner 32 175 BOOST | Shimano XT M8000 | Sunrace 11-46 11V | Torpado | DRC FRONT 29” i30 REAR 27,5” i33 | FRONT Continental TrailKing 29”x2.4 REAR Continental MountainKing 27,5”x2.6 | Formula Cura 180/180 | Torpado Alloy W780 R | 4US Alloy 50mm | KS Eteni 27.2 100/420 | Selle Italia X3 Boost Flow |
| AVAILABLE UPGRADES | ✓ | ✓ | ✓ | ✓ | ✓ |
| SIZE | A SEAT TUBE LENGTH (mm) | F TOP TUBE HORIZONTAL (mm) | D HEAD TUBE LENGTH (mm) | E SEAT TUBE ANGLE EFFECTIVE (°) | C HEAD TUBE ANGLE (°) | FC FRONT CENTRE (mm) | RC CHAIN STAY LENGTH (mm) | WB WHEELBASE (mm) | DROP | STACK (mm) | REACH (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMALL | 380 | 569 | 90 | 70° | 67° | 634 | 440 | 1171 | 37 | 623.5 | 331 |
| MEDIUM | 430 | 593 | 100 | 70° | 67° | 664 | 440 | 1101 | 37 | 637 | 358 |
| LARGE | 480 | 623 | 110 | 70° | 67° | 690 | 440 | 1127 | 37 | 645 | 380 |
| X-LARGE | 530 | 644 | 120 | 70° | 67° | 710 | 440 | 1148 | 37 | 655 | 396 |
| SIZE / BIKER HEIGHT | SMALL / 158 - 164 cm | MEDIUM / 164 - 175 cm | LARGE / 175 - 185 cm | X-LARGE / 185 - 196 cm |
