*Data only rapresents an indication for the actual riding distance. The actual range can vary depending on sage and rider prole, riding conditions and battery life.

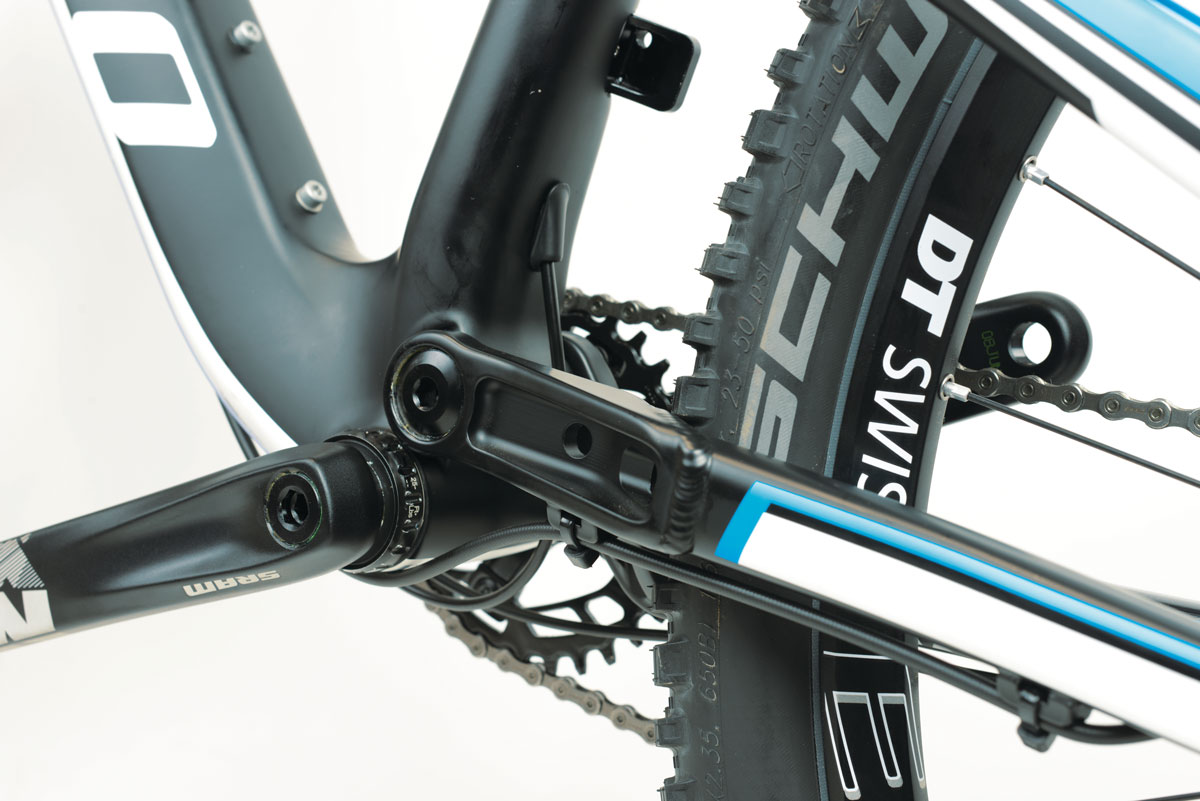

Frame with BSA Bottom Bracket
Outer skin in 3k carbon
Predisposition for cable for suspended remote control
Monocoque carbon frame, disc-brake mount included
12mm through axle system improves stiffness and riding precision
Tapered head tube improves stiffness, stability and riding precision
Torpado Front Derailleur Direct-Mount
Front derailleur is mounted directly on the seat tube without any clamp; this solution allows weight reduction of the bicycle
Torpado technicians and Torpado Factory Team cooperate on MTB design, development, and testing
| FORK | REAR SHOCK ABSORBER | REAR DERAILLEUR | CHAINWHEEL | SHIFTING LEVERS | CASSETTE | WHEELS | TYRES | BRAKES | HANDLEBAR | STEM | SEAT POST | SADDLE | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 21I7NI | NORIKER N SRAM SX EAGLE 12S | Rock Shox 35 Gold 160mm | Rock Shox Monarch RL 216/63 | Sram SX | Sram SX Eagle 32T 175mm | Sram SX | Sram PG-1210 11-50 | DT350 ZTR Arch | Schwalbe Nobby Nic 27.5x2.35 | Formula Cura 180/180 | Torpado Alloy 780 rise 20 | Torpado Alloy | KS Ragei | Selle Italia X3 Boost Flow |
| SIZE | A SEAT TUBE LENGTH (mm) | F TOP TUBE HORIZONTAL (mm) | D HEAD TUBE LENGTH (mm) | E SEAT TUBE ANGLE EFFECTIVE (°) | C HEAD TUBE ANGLE (°) | FC FRONT CENTRE (mm) | RC CHAIN STAY LENGTH (mm) | WB WHEELBASE (mm) | DROP | STACK (mm) | REACH (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMALL | 405 | 565 | 120 | 73° | 66° | 696 | 440 | 1136 | 4 | 587 | 390 |
| MEDIUM | 457 | 590 | 120 | 73° | 66° | 721 | 440 | 1161 | 4 | 587 | 415 |
| SIZE / BIKER HEIGHT | SMALL / 158 - 164 cm | MEDIUM / 164 - 175 cm |
