*Data only rapresents an indication for the actual riding distance. The actual range can vary depending on sage and rider prole, riding conditions and battery life.
NEARCO N is the Torpado brand MTB. The muscular bicycle of the Impudent line with the carbon frame suitable for all riders.
The particular trapezoidal design allows a stiffer and stronger structure of the entire frame
Carbon dropout
Outer skin UD carbon

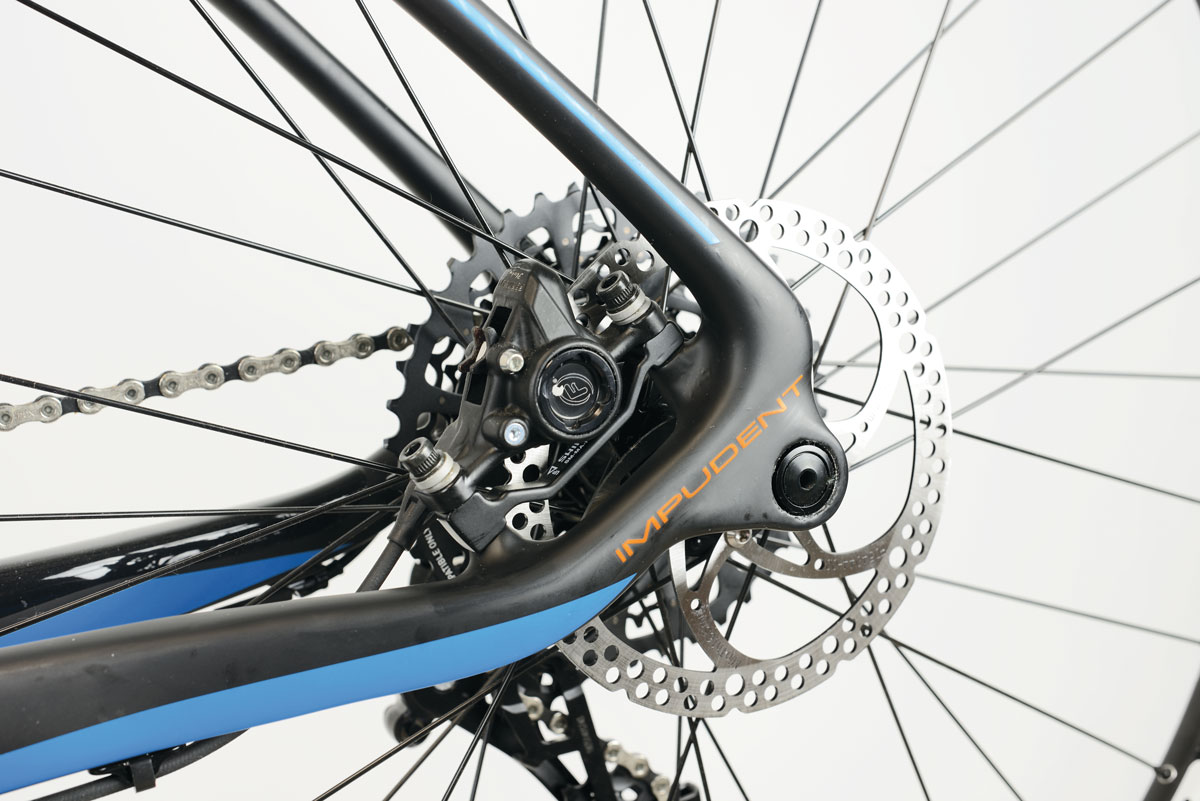

Horizontal Rear Brake: Disk brake post mounted on chain stay. This solution allows a more appealing shape, better braking performances and weight reduction
Monocoque carbon frame, disc-brake mount included

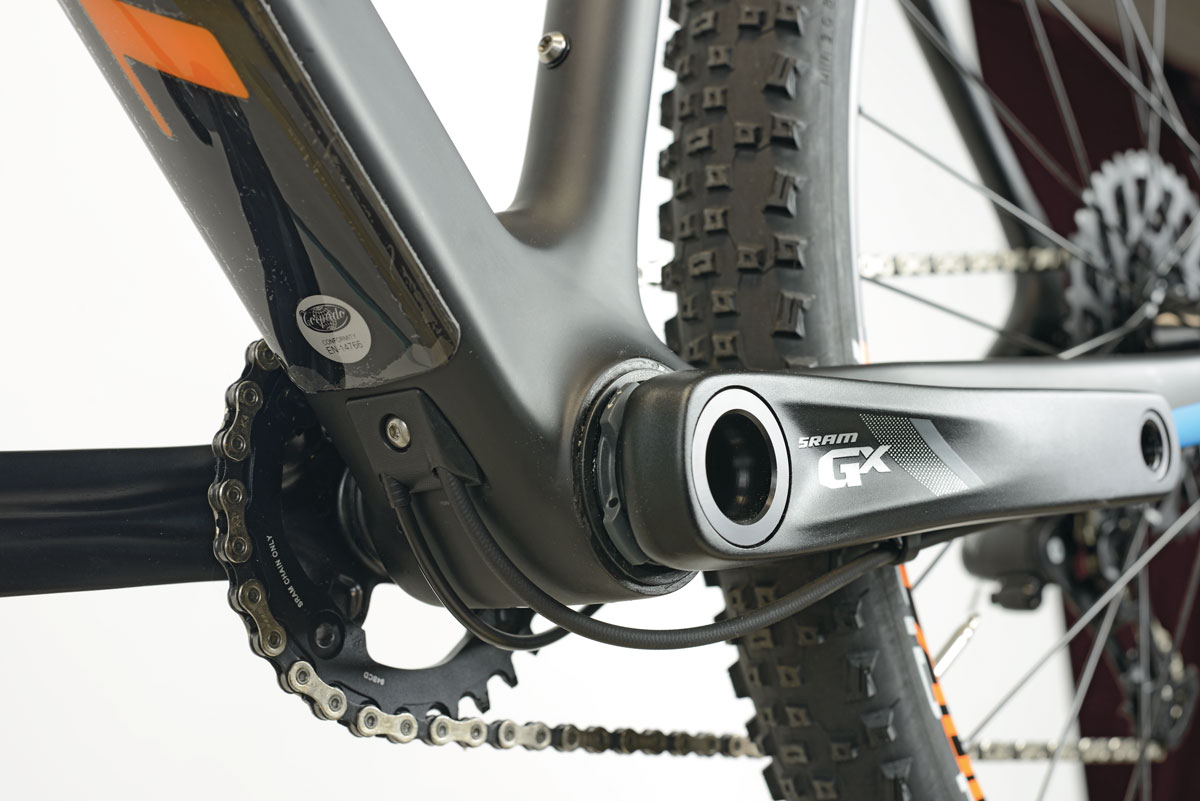

Frame with PRESS-FIT 30 BB. It improves stiffness, combining the advantages of Press-Fit and BB30
27,2mm. Seat Post allows to reduce the weight of the bike, keeping torsional stiffness
12mm through axle system improves stiffness and riding precision

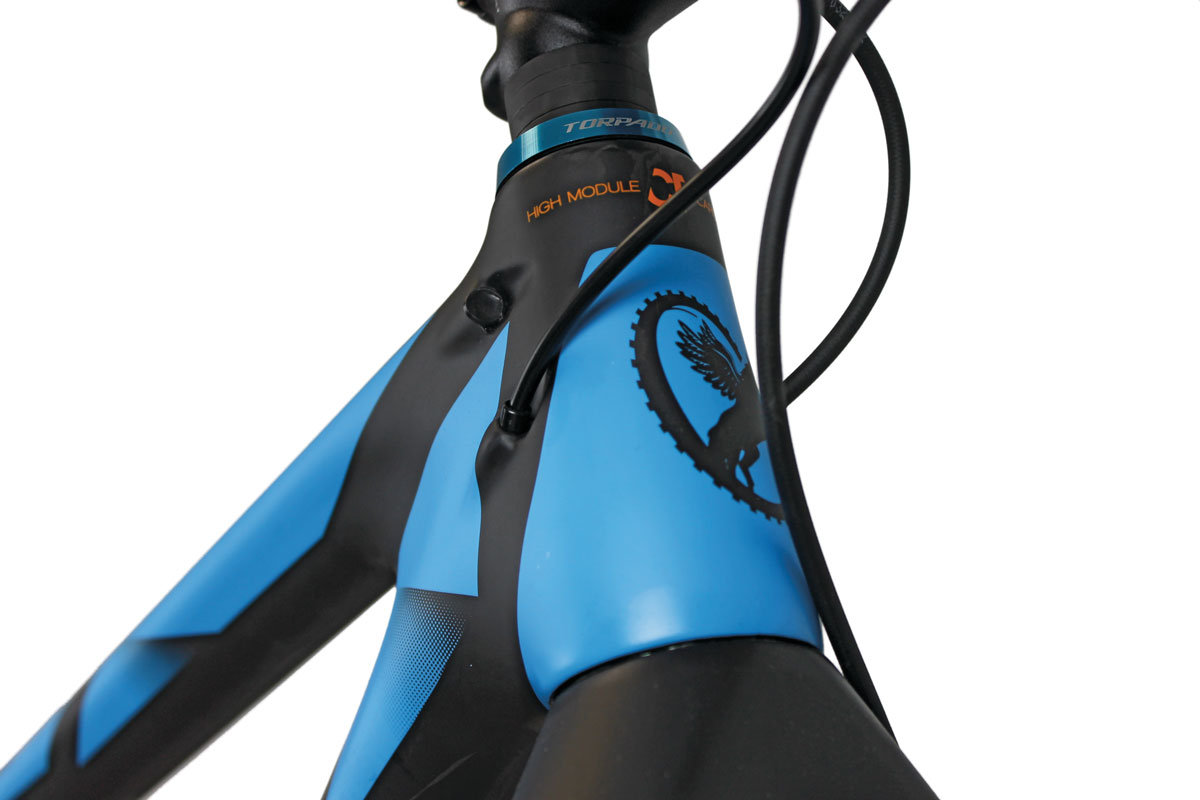

Tapered head tube improves stiffness, stability and riding precision
Torpado Front Derailleur Direct-Mount
Front derailleur is mounted directly on the seat tube without any clamp; this solution allows weight reduction of the bicycle
Torpado technicians and Torpado Factory Team cooperate on MTB design, development, and testing
Frame with integrated cable system, for a neat look of the bicycle
| SIZE | A SEAT TUBE LENGTH (mm) | F TOP TUBE HORIZONTAL (mm) | D HEAD TUBE LENGTH (mm) | E SEAT TUBE ANGLE EFFECTIVE (°) | C HEAD TUBE ANGLE (°) | FC FRONT CENTRE (mm) | RC CHAIN STAY LENGTH (mm) | WB WHEELBASE (mm) | DROP | STACK (mm) | REACH (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SMALL | 380 | 555 | 110 | 73° | 70° | 616 | 425 | 1037 | 56 | 585 | 376 |
| MEDIUM | 430 | 585 | 115 | 73° | 70° | 646 | 425 | 1067 | 56 | 591 | 404 |
| LARGE | 480 | 610 | 130 | 73° | 70° | 672 | 425 | 1093 | 56 | 605 | 425 |
| SIZE / BIKER HEIGHT | SMALL / 158 - 164 cm | MEDIUM / 164 - 175 cm | LARGE / 175 - 185 cm |
