ECLIPSE A
TECHNO ALUMINIUM- FULL 100MM
Picture is for illustration purpose only. For all specifications and fittings, consult your dealer.
Predisposition for cable for suspended remote control
Through a sophisticated hydraulic forming process we can build aluminium frames with complex tubes that increase the strength of the structure

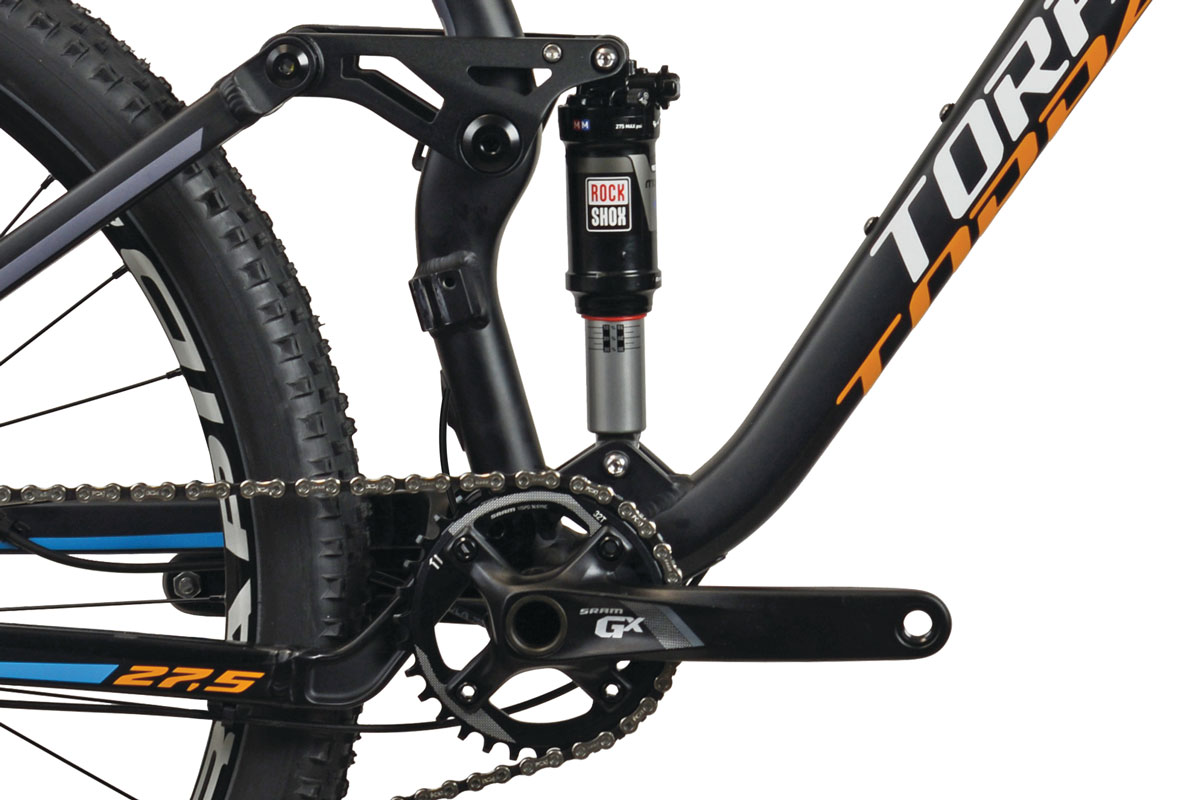

Rear Shocks Internal Routing. Predisposition for cable for rear shock absorber
12mm through axle system improves stiffness and riding precision

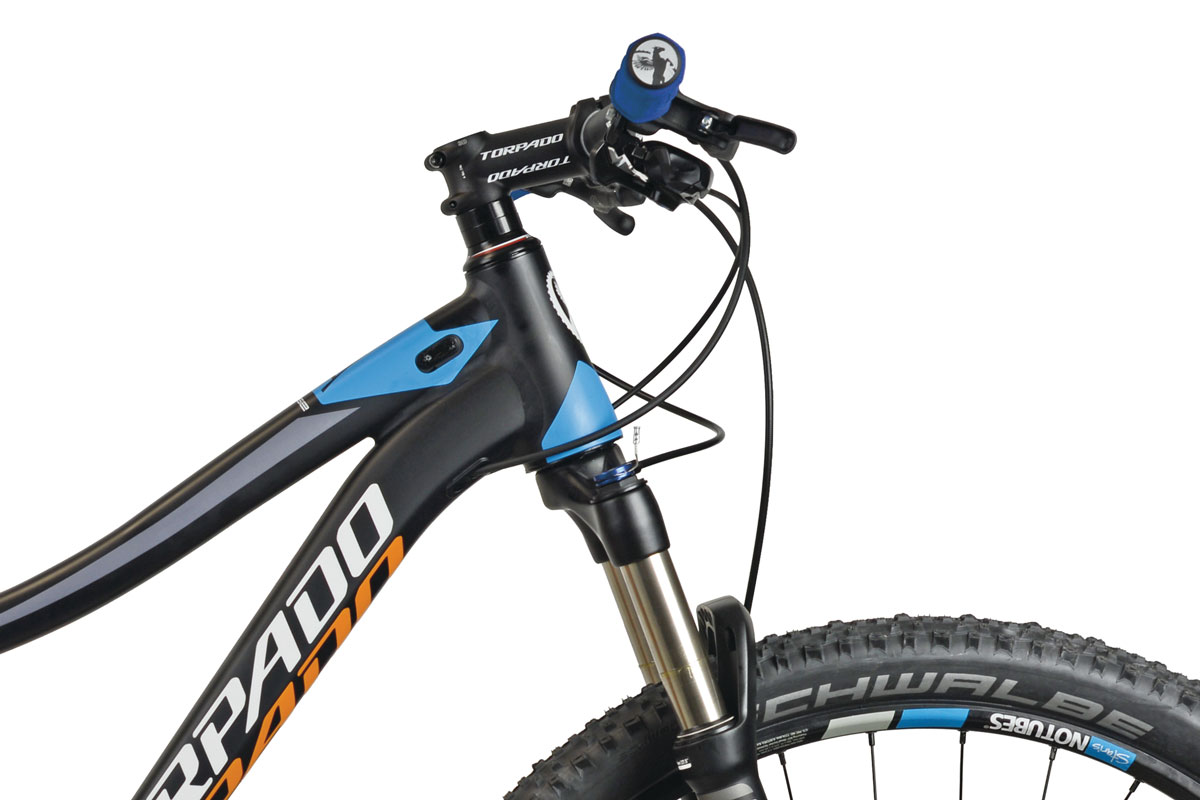

Tapered head tube improves stiffness, stability and riding precision
High performance aluminium

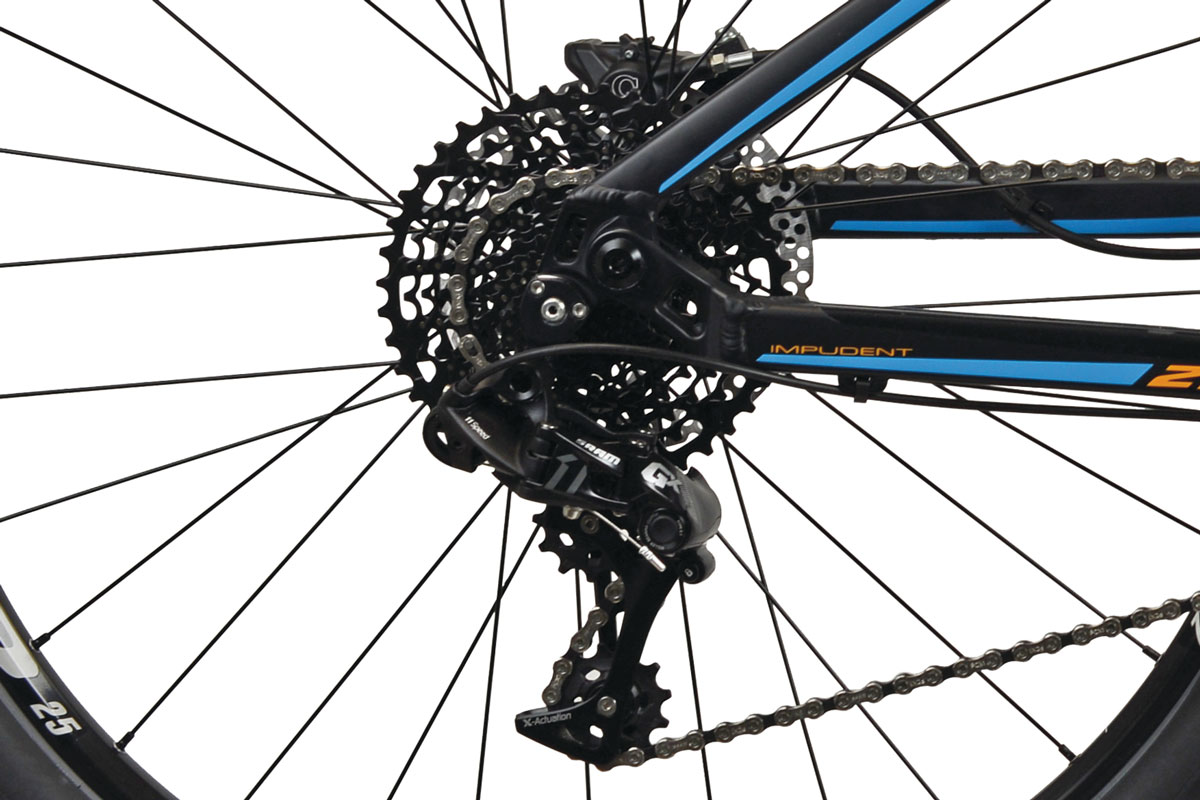

Disk brake post mounted on seat stay. This solution allows excellent braking performances and weight reduction
Frame with integrated cable system, for a neat look of the bicycle
SIZE | A SEAT TUBE LENGTH (mm) | F TOP TUBE HORIZONTAL (mm) | D HEAD TUBE LENGTH (mm) | E SEAT TUBE ANGLE EFFECTIVE (°) | C HEAD TUBE ANGLE (°) | FC FRONT CENTRE (mm) | RC CHAIN STAY LENGTH (mm) | WB WHEELBASE (mm) | DROP | STACK (mm) | REACH (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|
MEDIUM | 430 | 585 | 120 | 73° | 69° | 677 | 430 | 1107 | 6.5 | 568 | 411 |
LARGE | 480 | 610 | 135 | 73° | 69° | 703 | 430 | 1133 | 6.5 | 582 | 432 |
SIZE / BIKER HEIGHT | MEDIUM / 164 - 175 cm | LARGE / 175 - 185 cm |
